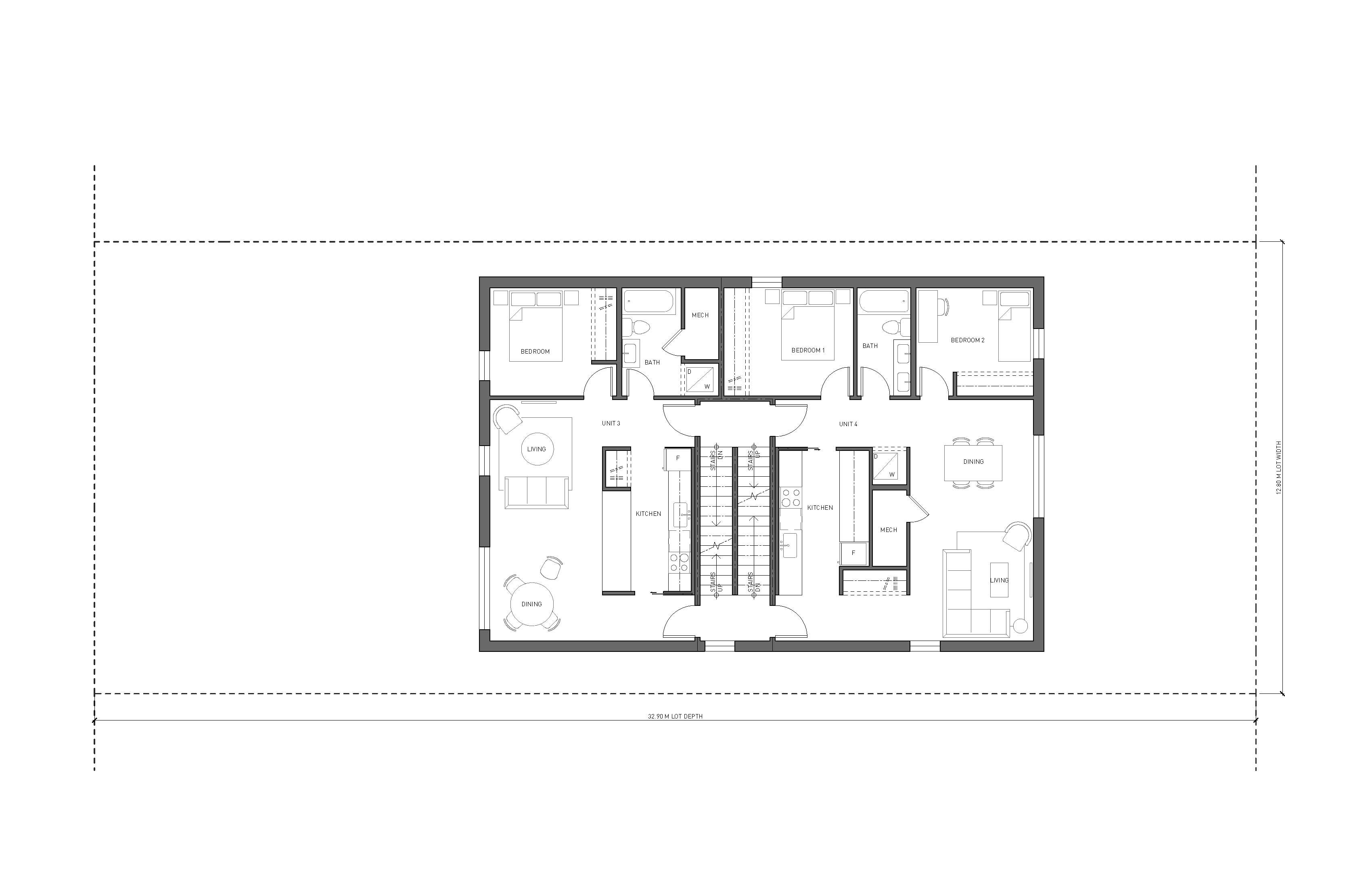

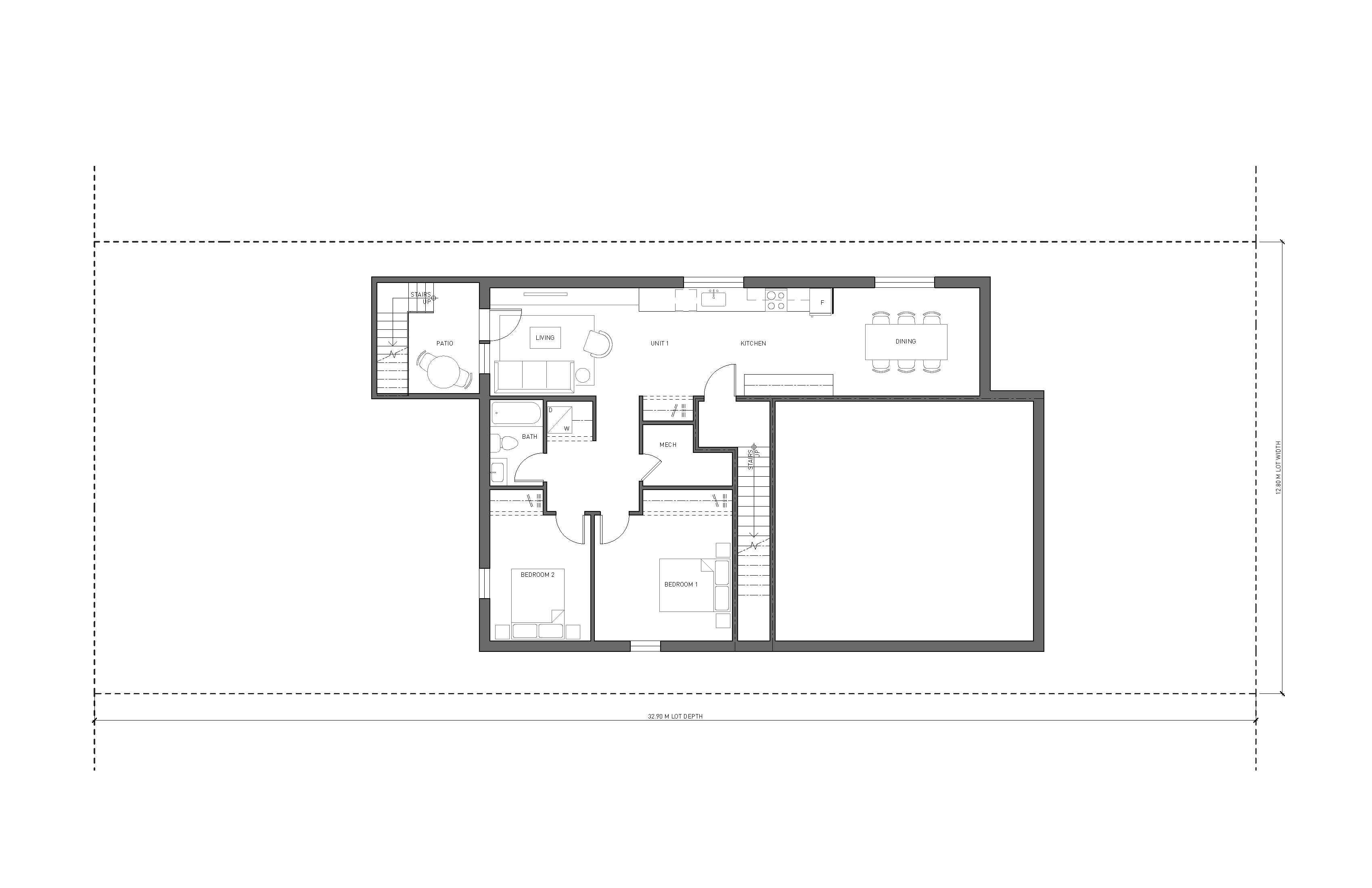

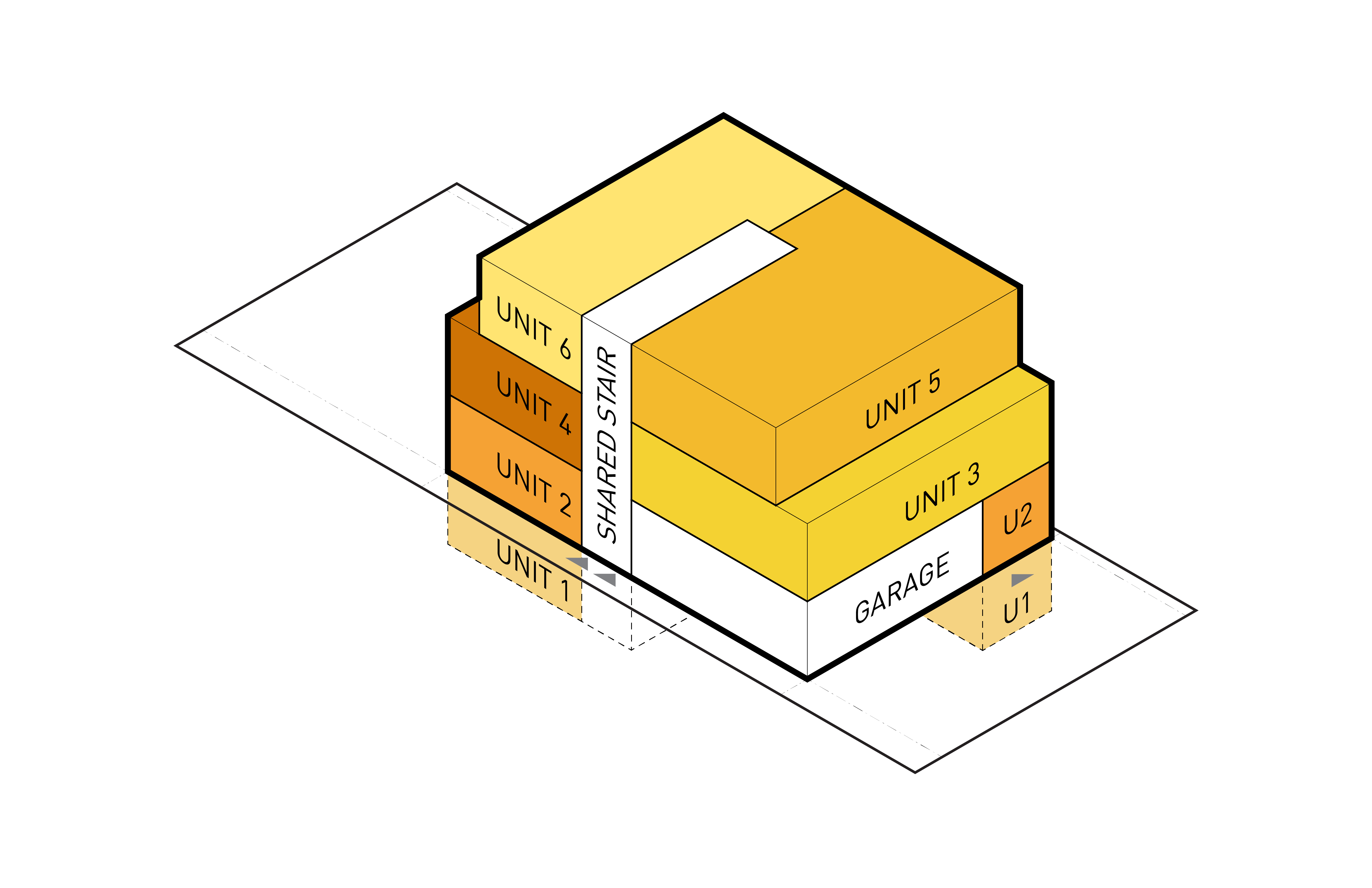

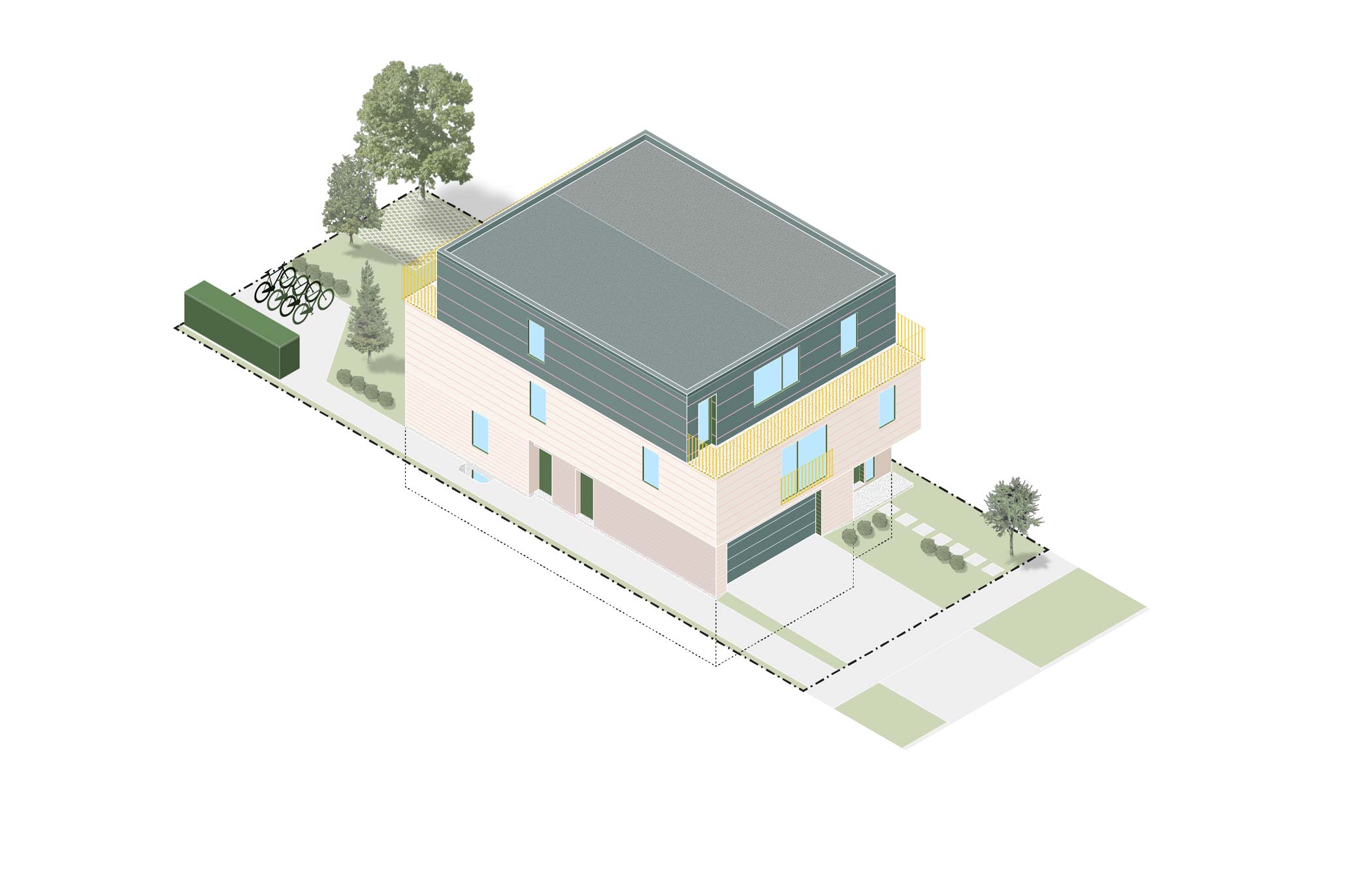

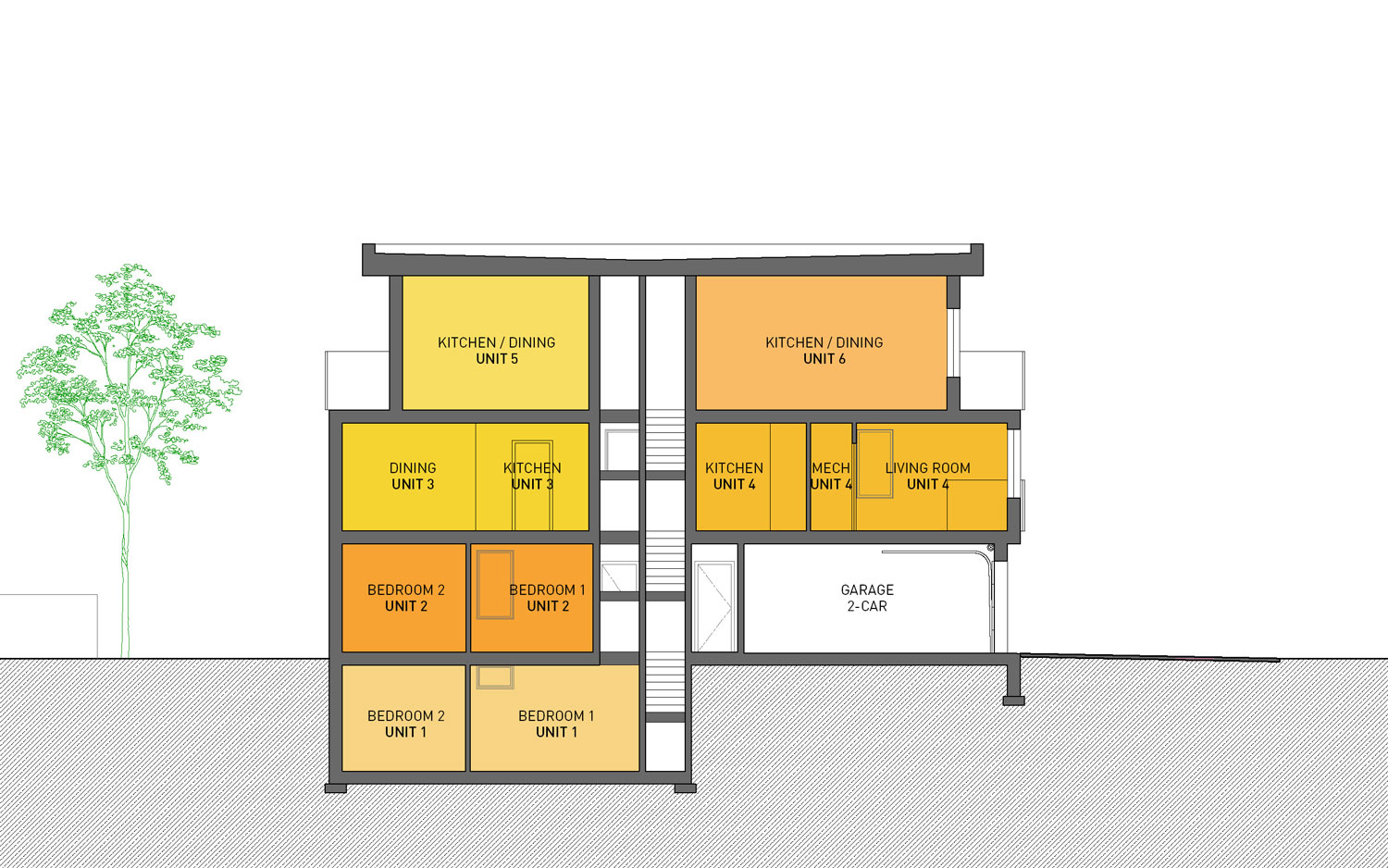

This style of New Multiplex has an integrated garage on the ground floor and a scissor stair that provides access to the basement, second and third floors. The ground-floor unit is accessed from grade, and the basement unit can also be accessed from a sunken courtyard which also functions as a private outdoor space. The units on the third floor have their own terraces.

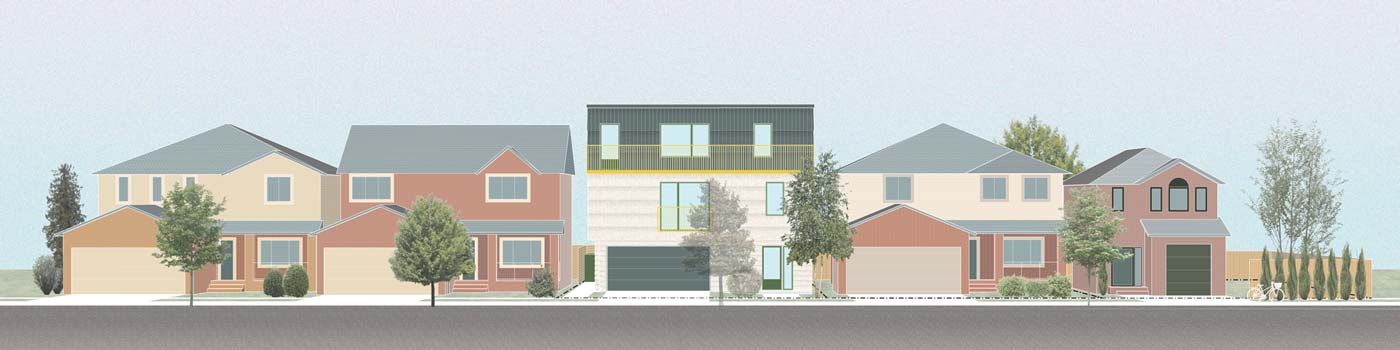

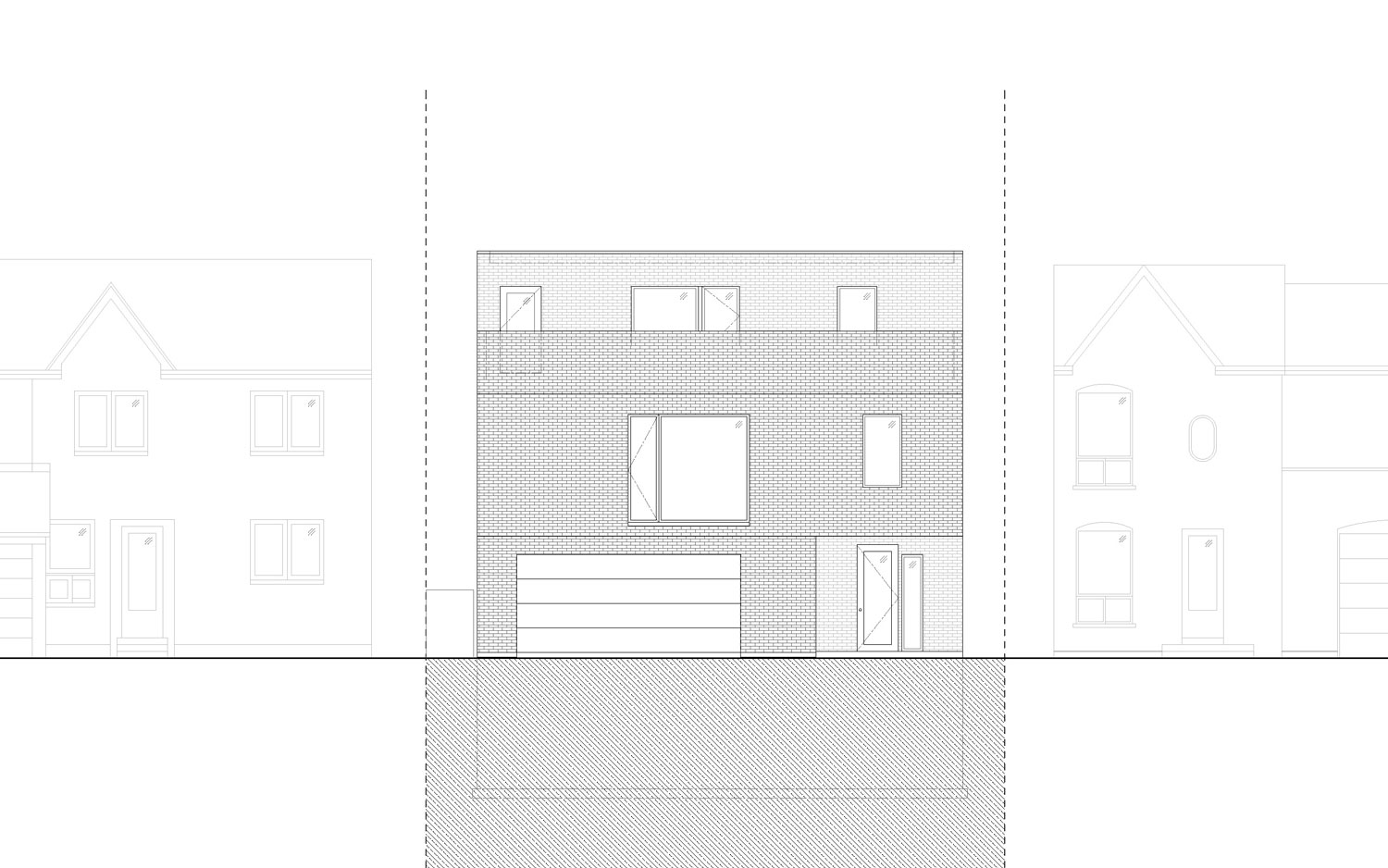

The integrated 2-car garage opening was limited to 50% of the lot width to maintain vibrant streetscapes with ground-level windows and front doors facing the street. All units share use of the backyard and bike parking pad.

Lot Dimensions: 12.80m x 32.94m

Occupancy and Density:
Total Unit Count: 6 Units
Total Occupancy: 8 Bedrooms

Lot Area: 421.6 sqm (4,538 sqft)

Housing Statistics:
Total Floor Area: 419.0 sqm (4,510 sqft)
Studio Units: 1
1-Bedroom Units: 2
2-Bedroom Units: 3
Parking Spaces: 2 (Garage)
