Multiplex Catalogue
01 Sixplex Narrow

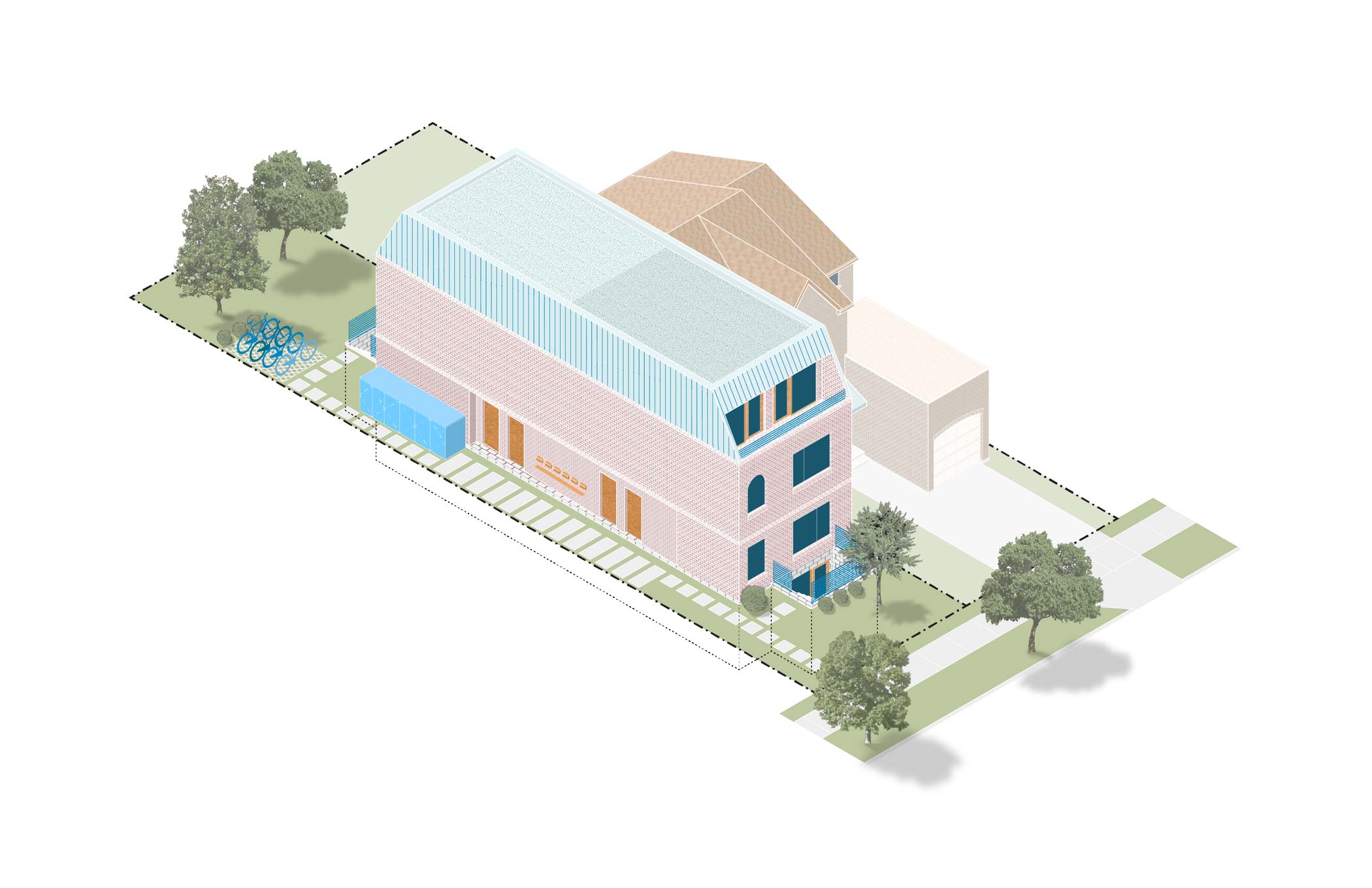

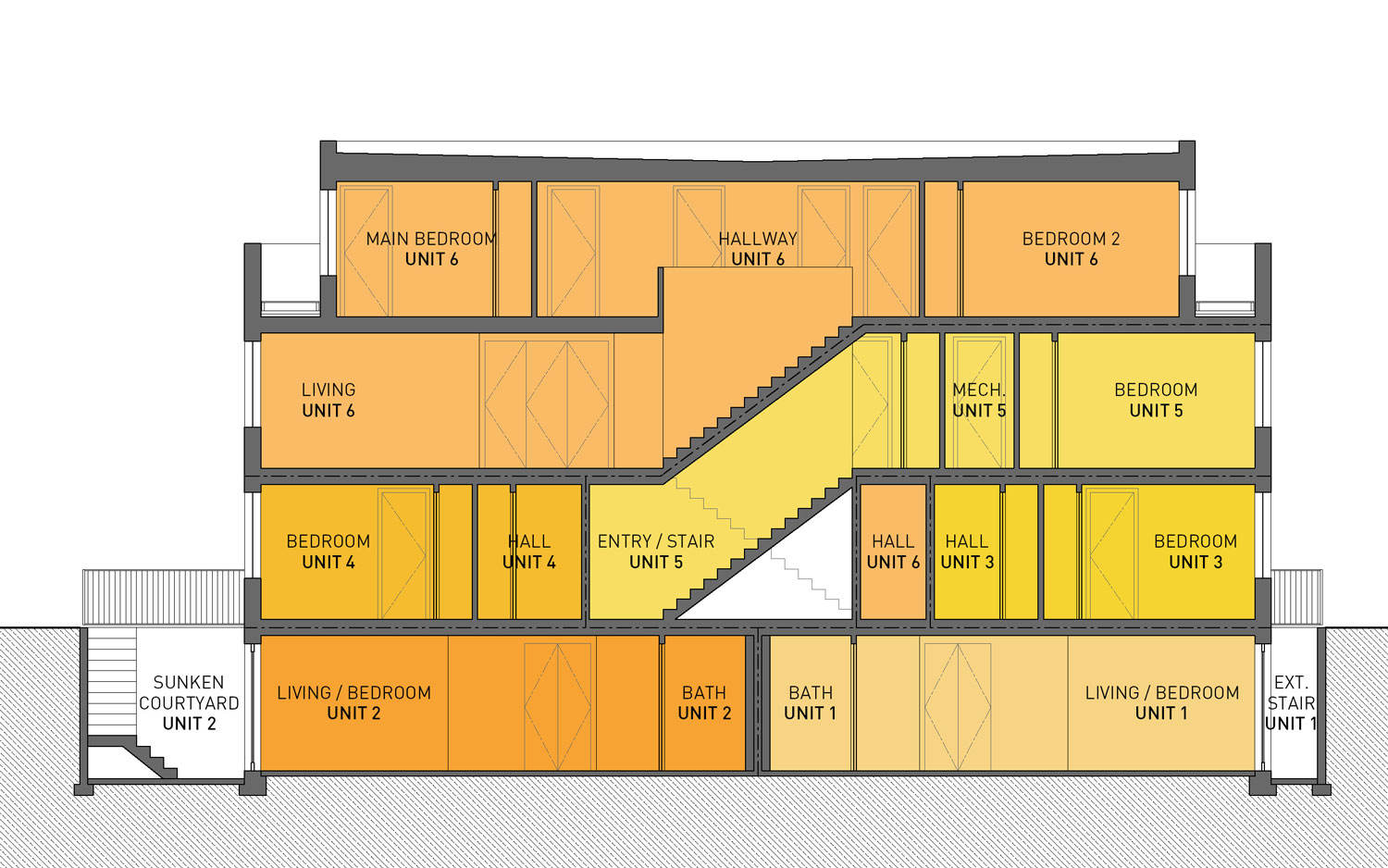

In this style of New Multiplex, each unit has its own separate entrance and stair from the ground floor. The basement, ground floor, and second floor each have a unit towards the front and a unit towards the back, with the unit at the rear of the second floor continuing into the third floor. One of the basement units is accessed via a sunken courtyard, and the other via a sunken stair.
This particular design is intended for a semi-detached lot, and therefore has no windows on one of its sides. All units share use of the backyard and bike parking pad. No on-site parking is provided.
Lot Dimensions: 7.91m x 35.85m (Semi-Detached)
This particular design is intended for a semi-detached lot, and therefore has no windows on one of its sides. All units share use of the backyard and bike parking pad. No on-site parking is provided.
Lot Dimensions: 7.91m x 35.85m (Semi-Detached)
Occupancy and Density:
Total Unit Count: 6 Units
Total Occupancy: 8 Bedrooms
Lot Area: 283.57 sqm (3,052 sqft)
Housing Statistics:
Total Floor Area: 367.0 sqm (3,950 sqft)
Studio Units: 3
1-Bedroom Units: 2
3-Bedroom Units: 1
Parking Spaces: 0
Total Unit Count: 6 Units
Total Occupancy: 8 Bedrooms
Lot Area: 283.57 sqm (3,052 sqft)
Housing Statistics:
Total Floor Area: 367.0 sqm (3,950 sqft)
Studio Units: 3
1-Bedroom Units: 2
3-Bedroom Units: 1
Parking Spaces: 0
Floor Plans
