Multiplex Catalogue
02 Sixplex Medium

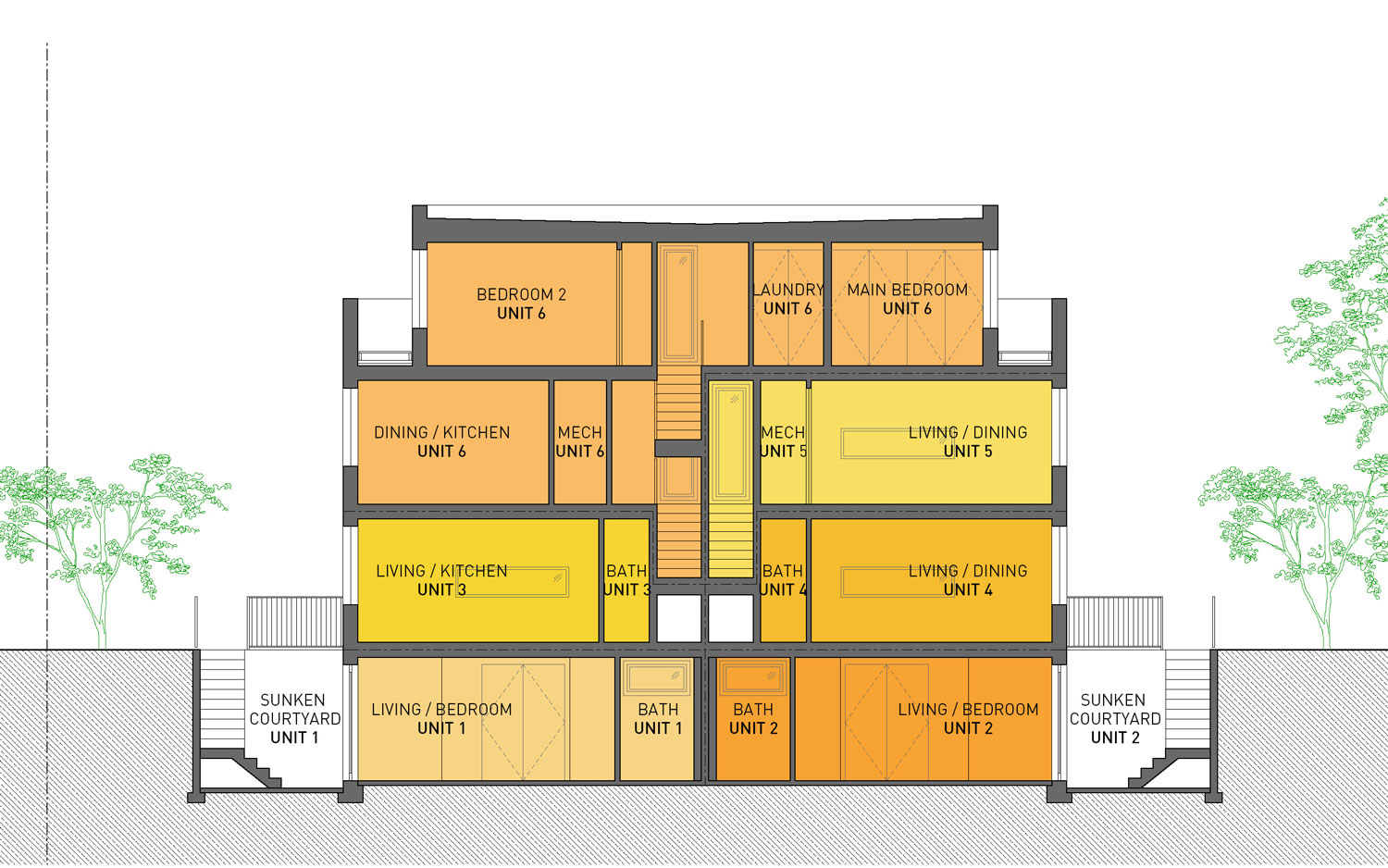

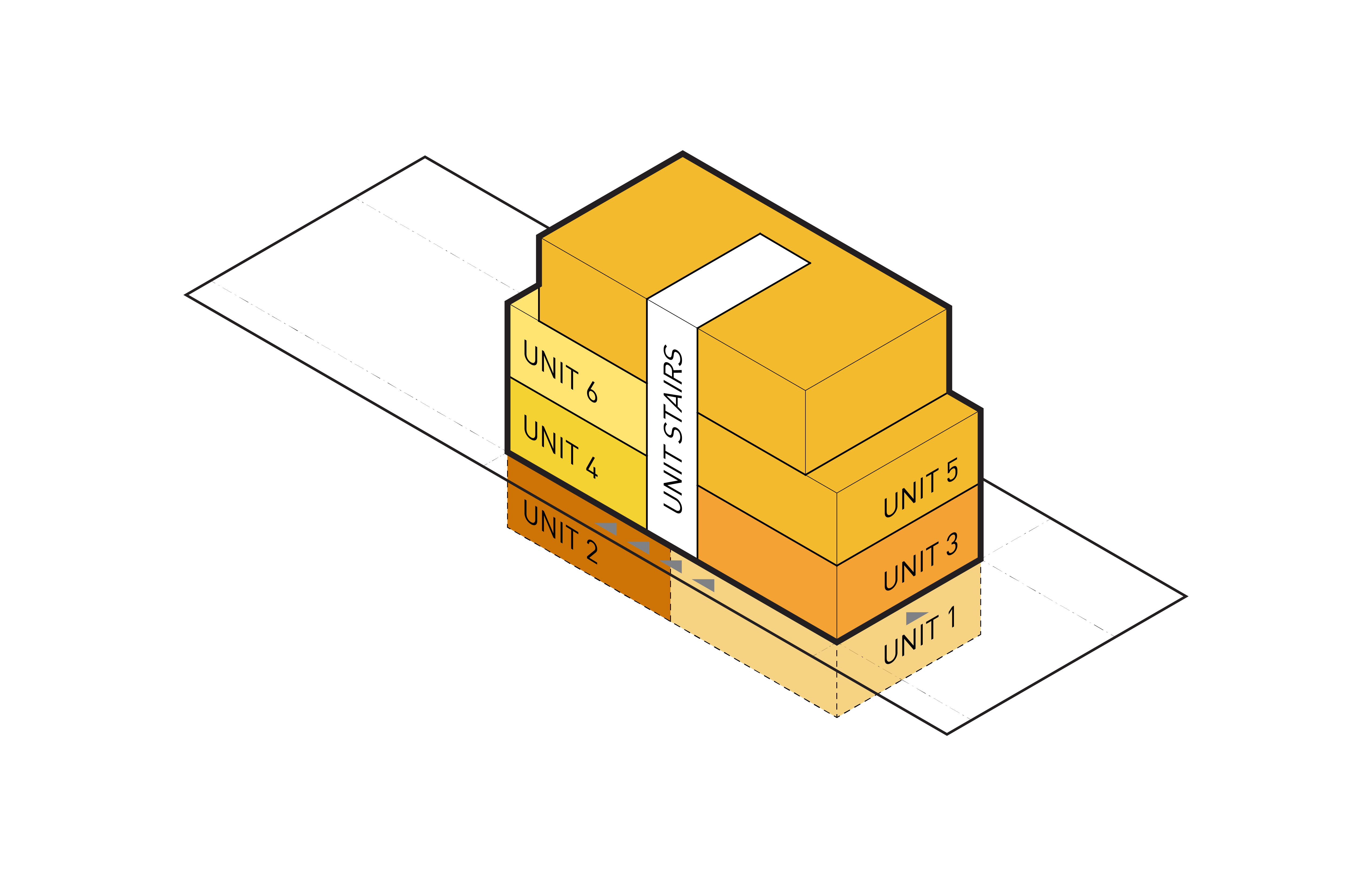

In this style of New Multiplex, each unit has its own separate entrance and stair from the ground floor. The basement, ground floor, and second floor each have a unit towards the front and a unit towards the back, with the unit at the front of the second floor continuing into the third floor. The basement units are accessed via their sunken courtyards, which also function as light wells and private outdoor space.

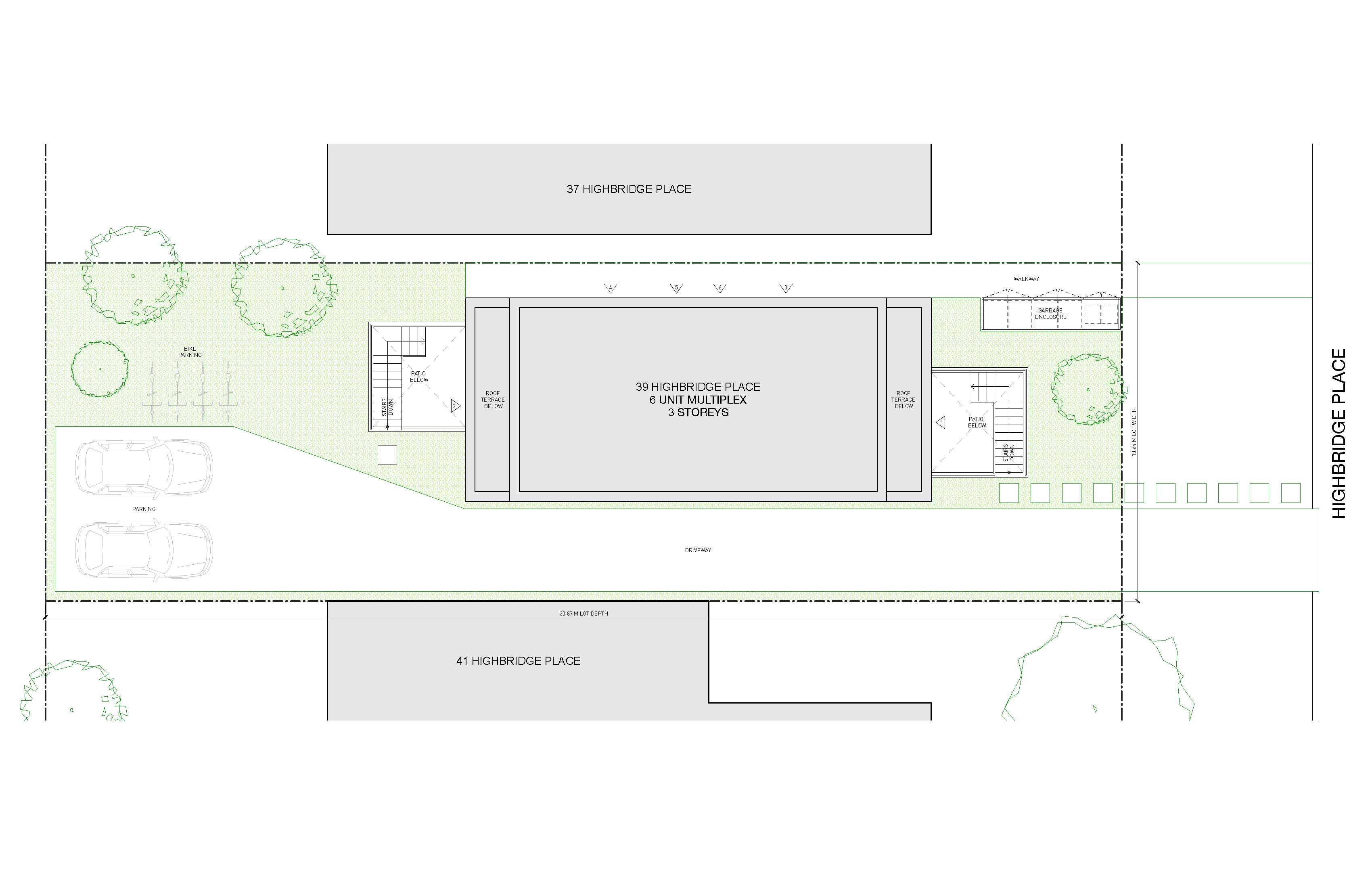

2-car surface parking is provided in the rear yard, and all units share use of the backyard and bike parking pad.
Lot Dimensions: 10.64m x 33.87m
2-car surface parking is provided in the rear yard, and all units share use of the backyard and bike parking pad.
Lot Dimensions: 10.64m x 33.87m
Occupancy and Density:
Total Unit Count: 6 Units
Total Occupancy: 8 Bedrooms
Lot Area: 360.4 sqm (3,879 sqft)
Housing Statistics:
Total Floor Area: 301.0 sqm (3,240 sqft)
Studio Units: 5
3-Bedroom Units: 1
Parking Spaces: 2
Total Unit Count: 6 Units
Total Occupancy: 8 Bedrooms
Lot Area: 360.4 sqm (3,879 sqft)
Housing Statistics:
Total Floor Area: 301.0 sqm (3,240 sqft)
Studio Units: 5
3-Bedroom Units: 1
Parking Spaces: 2
Floor Plans

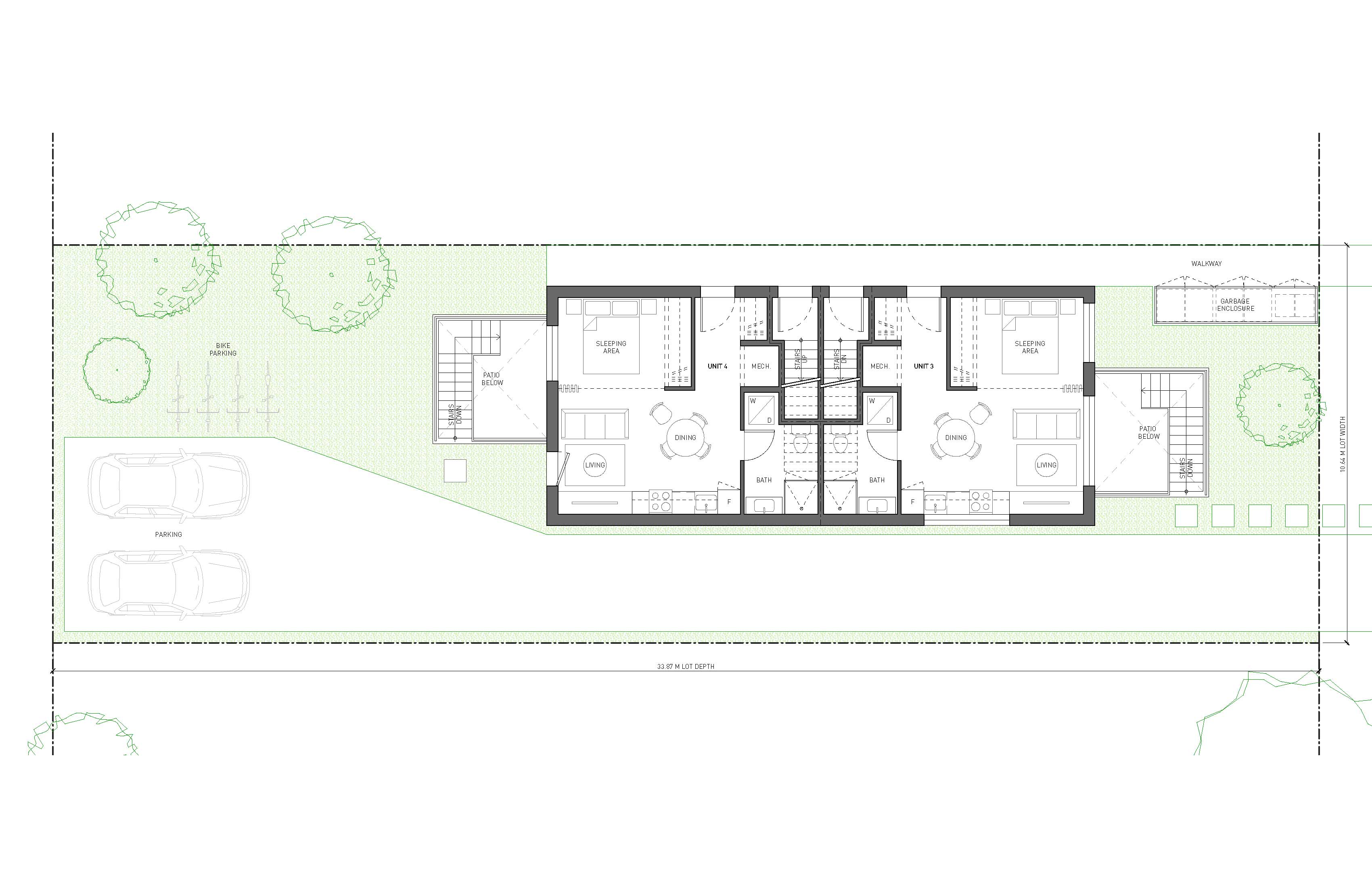

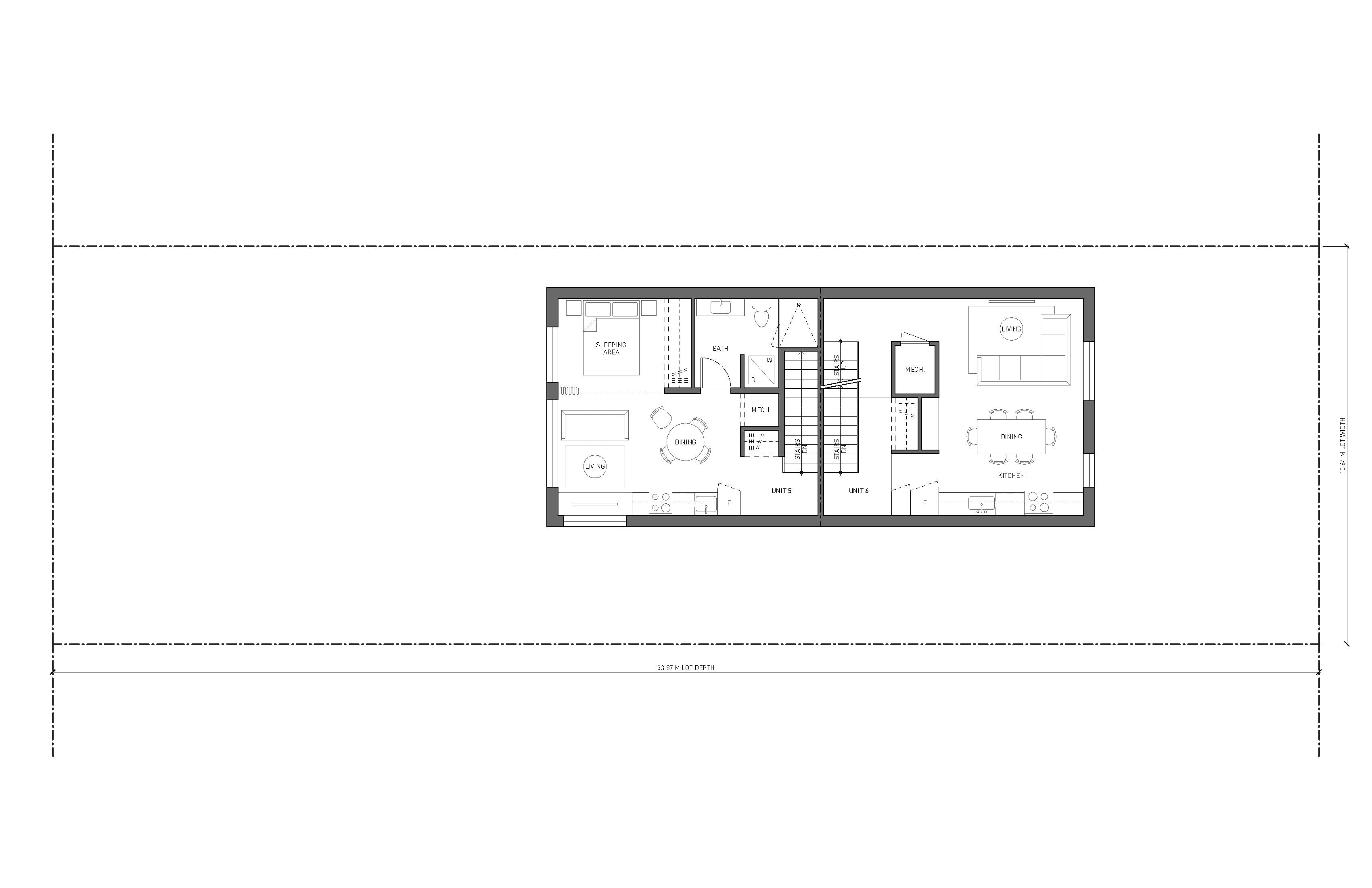

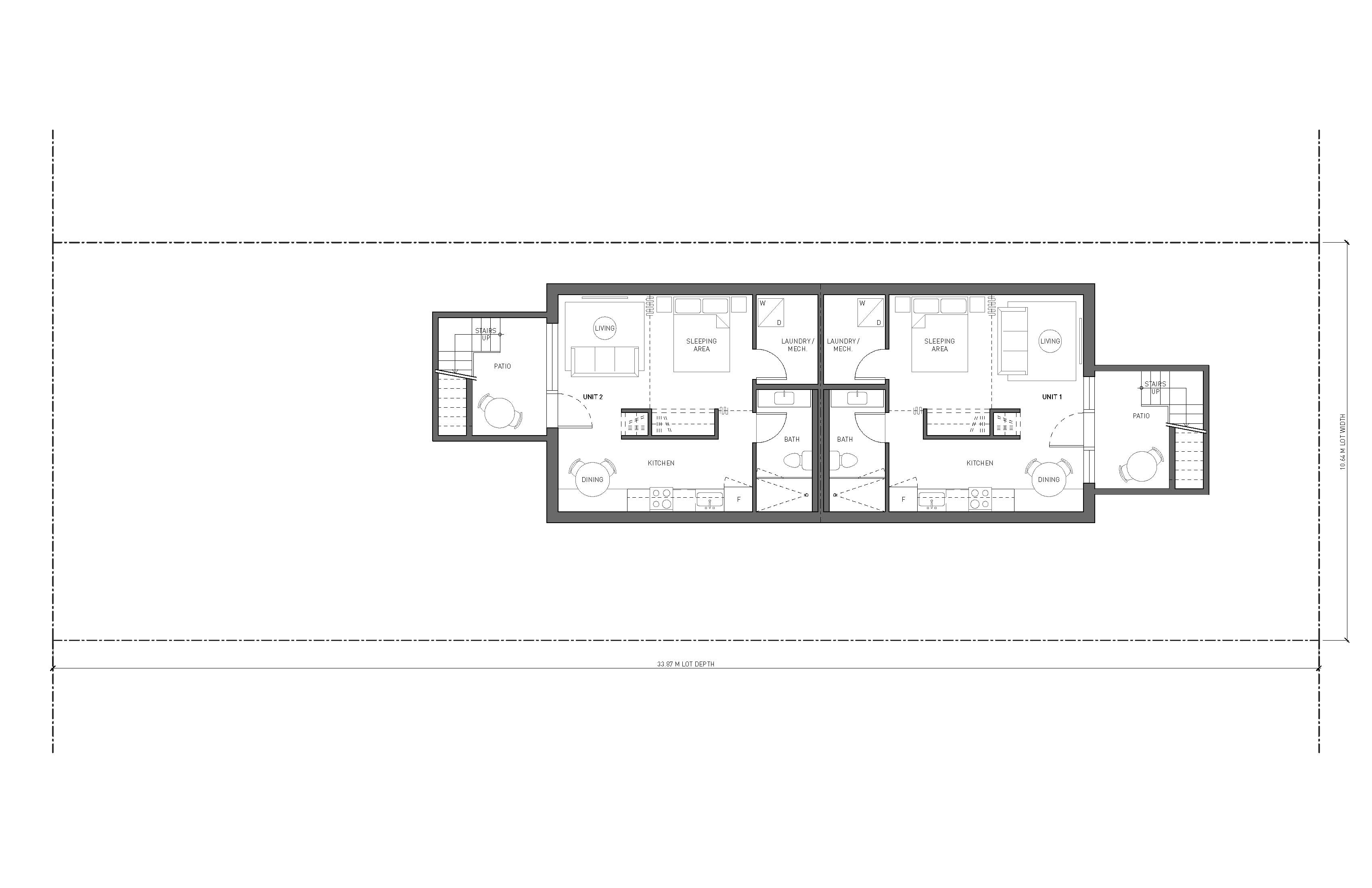

Presented below are the floor plans of a case-study example for reference.
